When designing a prefabricated steel building in the WebSteel system, you get the following design and engineering drawings:
-

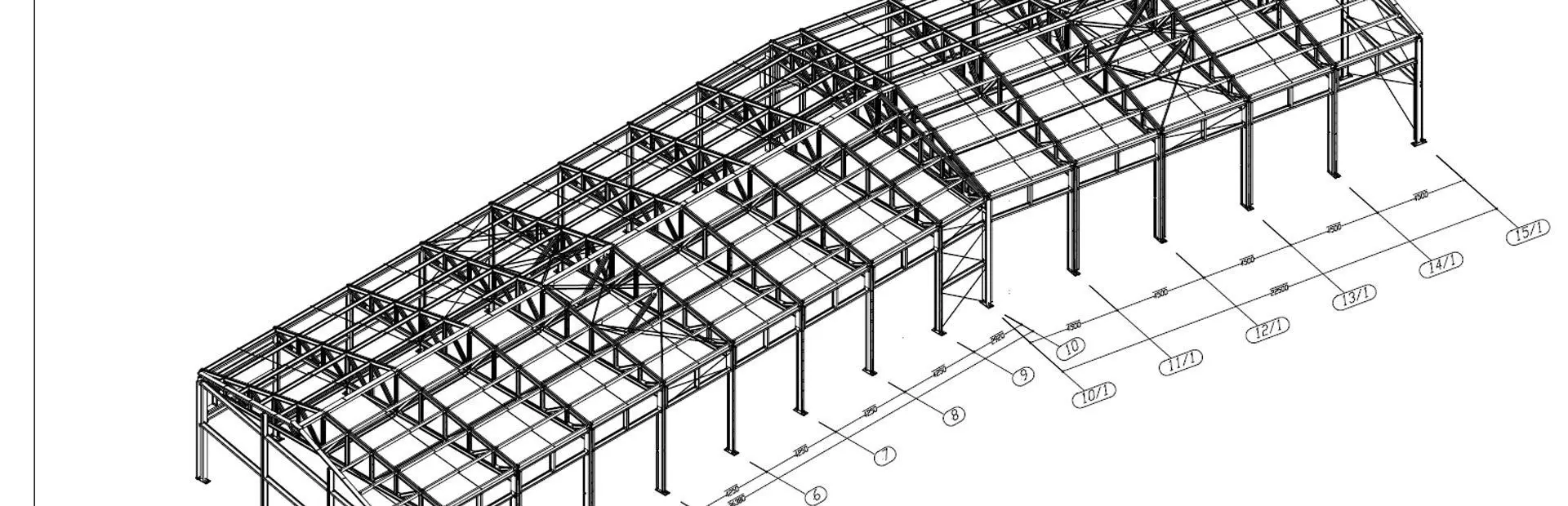

Load-bearing structures (metal structures): plan of columns and racks half-timbered, plan of beams and girders, technical specification of steel, characteristic sections, interfaces of metal structures, general data and ext.
-

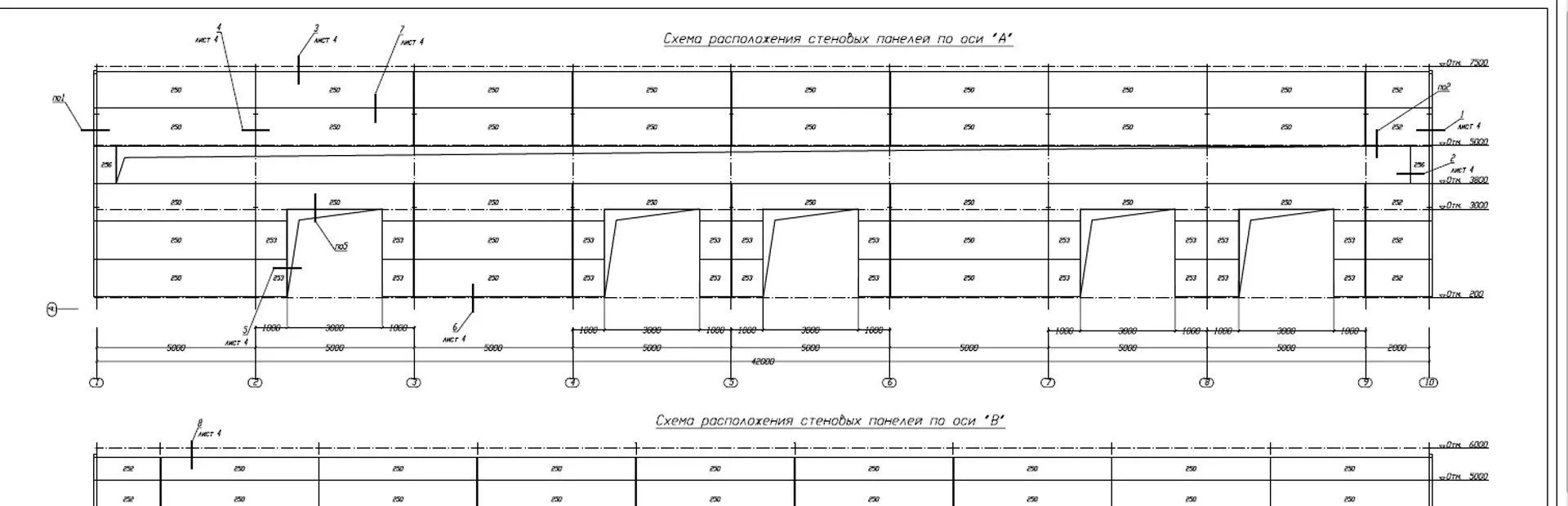

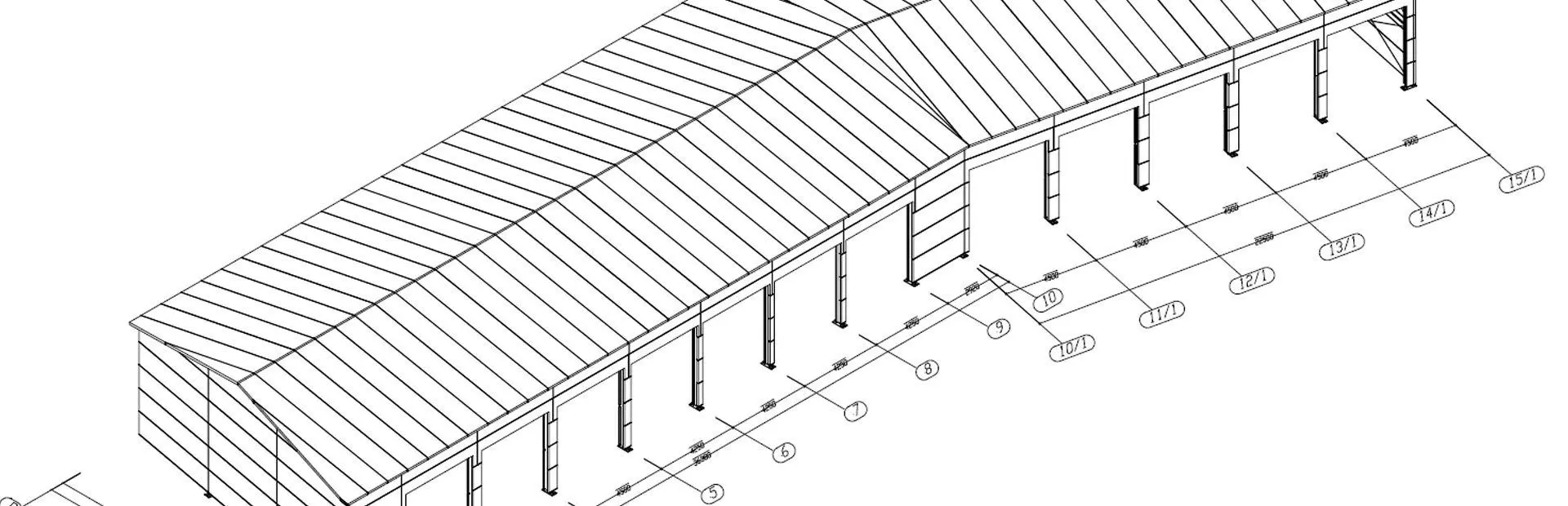

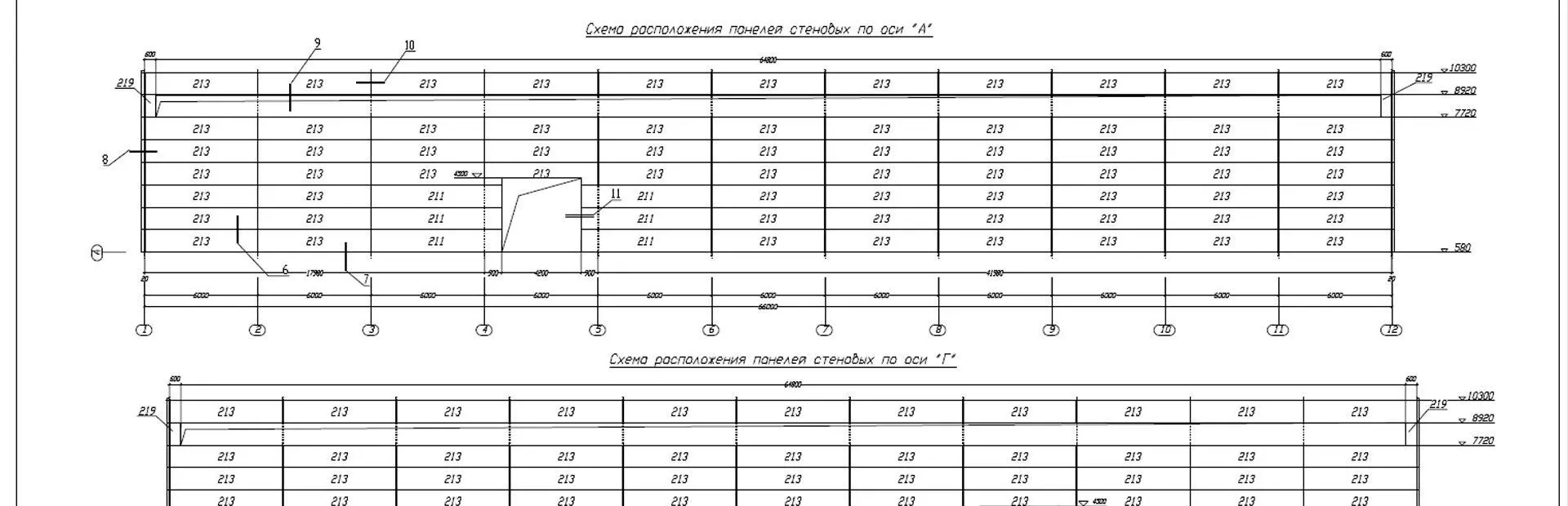

Cladding systems (architectural solution): the layout of the sandwich panels on the walls and the roof, the attachment points of the additional elements, the specification of panels and additional elements with self-tapping screws and the sections of the additional elements.
-

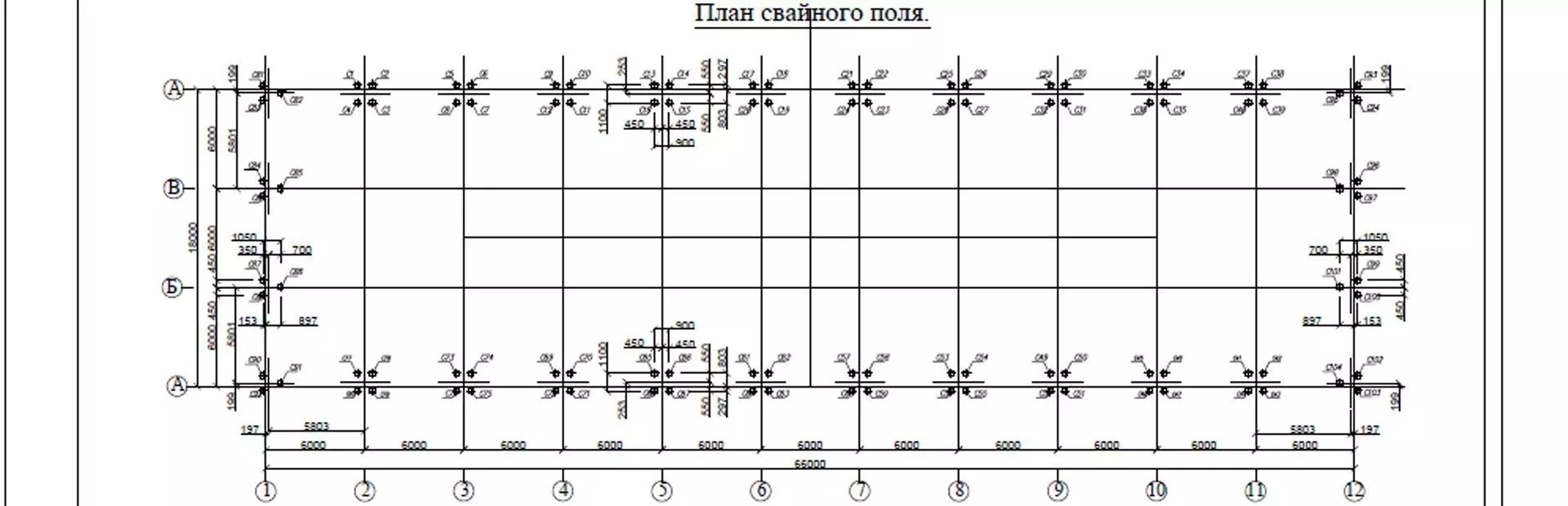

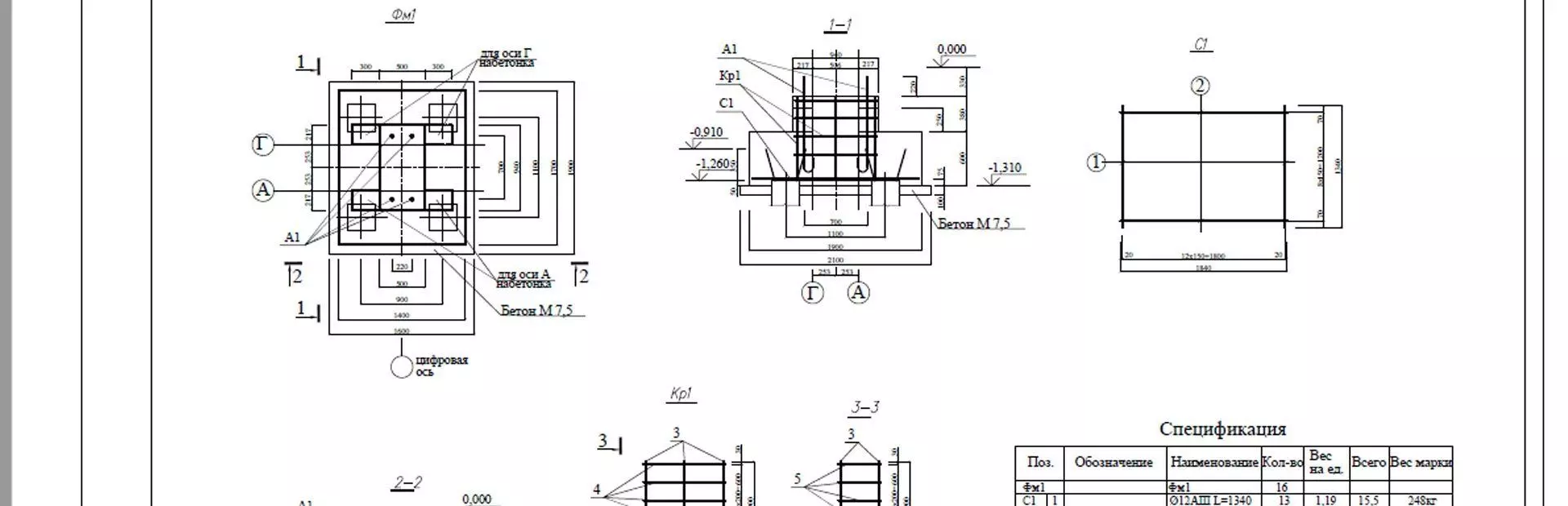

Foundation (reinforced concrete structures): foundation plan, general data, types and sections of foundations, types of reinforcing products, anchoring and reinforcing of the foundation beam and specifications.
IMPORTANT! When ordering a steel building to another country PK VESTA can translate all drawings into another required language.
