Pre-engineered steel buildings

Steel buildings from city Tula, Russia

Our factory PK VESTA offers custom pre-engineered buildings on order based on light steel structures for a wide range of international clients from different segments of global construction markets (Eurasia, North and Latin America, the Middle East and Africa) Our steel buildings are distinguished by a high level of quality, efficient design solutions, high energy efficiency, environmental friendliness and deep customization of the building (any geometric dimensions, the most advanced building technologies based on LSGF, classic Rigid Framing, HYBRID systems, effective Flat Roof, gable and lean-to structures, number of storeys up to 3 floors, the presence of a beam crane, any enclosing cladding structures for facades, etc.)

All products are manufactured on the latest European highly automated state-of-the-art equipment, taking into account modern international quality standards and building codes. We offer you reliable global solutions, time-tested since 1991 and joint work in Russia and abroad all based on the design and manufacture of custom prefabricated steel buildings (industrial, commercial, agricultural, military, sports, religious and municipal)

Warranty

Basic warranty

Choosing a reliable building from PC VESTA, you get a quality guarantee from the brand and the most comfortable conditions during the period of ownership of the building. For new buildings purchased on the territory of the Russian Federation, by default, a 1 year warranty is provided for a set of factory-made buildings and 25 years of operation

Extended Warranty

It is also possible to get a 5-year guarantee for a steel building with an individual account for the operation of facilities in different regions of Russia and international markets (the presence of the ocean or water resources, high levels of humidity indoors, the purpose of the building, certain technology, etc.)

Design and engineering

PK VESTA implements advanced online design solutions based on the most modern building technologies depending on the project requirements, country, culture and place of construction.

The new concept of “Smart Techno Design”

Following a new concept, PK VESTA has created opportunities for international customers to design individual buildings themselves in the new WebSteel online service via the Internet withing the wide range of technological capabilities of the plant, followed by ordering a building kit anywhere in the world.

The new concept of “Smart Techno Design”

Following a new concept, PK VESTA has created unique opportunities for international customers to design custom steel buildings by themselves in the new WebSteel online service via the Internet in the technological capabilities of the plant, followed by ordering a building kit to anywhere in the world. At the same time, the process of negotiating with expensive visualization and time-consuming calculations of buildings is automated to the maximum now. For the first time ever in a non-residential construction industry, the client acts as the chief designer and creator of his individual building image.

Thus, the design becomes technologically advanced and approaches as close as possible to the successful implementation of the project. Not all customers know the limitations and permissible compatibility of different materials for the steel building in the vast construction industry. Now many patterns and interdependencies are pre-programmed in the online service for design. Unlike traditional CAD systems, many processes occur on a remote server 24/7.

Huge variety of appearance

Depending on the design decisions, it is possible to create any type of steel structure for free: gable, lean-to, adjacent to the old building, flat roof, buildings with elevations, etc.

Huge variety of appearance

Place and create any framed openings for windows, gates, doors and sky lights in any part of the wall or slope of the steel building.

Apply and use any of the well-known styles for your project yourself: Contemporary, Scandinavian, Loft, Classic, Minimalism, Functionalism, Modern or Asian, depending on your lifestyle, worldview, culture and place of residence.

Unlimited possibilities to showcase your personality

The client can choose hundreds of options for individual color combinations based on the RAL catalog or textures for wood, stone or brick for walls and roofs (panel, horizontal strip, checkerboard pattern, alternating colors in several rows, etc.)

Unlimited possibilities to showcase your personality

Consider how you can organically fit your project inside the city or in the suburbs, taking into account the nearest buildings and structures, colors and local requirements. Now you have all the possibilities for this in the new free online service WebSteel!

Сonvenience and comfort

Experience the convenience of automating various engineering systems

Inside the building, it is possible to install any of the most common engineering networks, taking into account their load on the supporting structures to meet the requirements of the overall project and improve the quality of people’s work.

Experience the convenience of automating various engineering systems

Many air conditioning and ventilation systems, water purification, fire extinguishing systems, smoke exhaust, ventilation, electricity and water supply, lighting, heating, sewage, etc.

By default, our buildings take into account the technological load of up to 20 kg / sq.m. or any other at the request of the client. Often, we specifically choose truss structures for more convenient use of systems inside farms, in contrast to the classical crossbar system.

High heat and sound insulation properties

Classic sandwich panels based on non-combustible mineral wool insulation with the standard thickness of 100 mm (density - at least 110 kg / cubic meter) have one of the lowest thermal conductivity coefficients among similar materials (up to 0.05 W / Mk) or 32 dB (air noise insulation index)

High heat and sound insulation properties

For example, such a panel with a thickness of 100 mm equivalent in terms of technical properties to a 900 mm wall of ceramic hollow bricks or a 560 mm wall of expanded clay concrete or a 230 mm wall of wooden beams. Also, it reduces noise by about 2 times compared with the noise level in a public place, restaurant or bar (60 dpi). In other countries, for non-residential buildings it is possible to use sandwich panels based on PIR insulation (polyisocyanurate foam) with a more favorable coefficient of thermal conductivity (0.022)

100% free layout inside the building

A client receives a fantastic free single span of up to 30m wide in Northern countries with snow load for structures made out of LSGF (or 36m in Southern countries with minimal or no snow loads) or up to 90m wide based on Rigid Framing technology.

100% free layout inside the building

With the astonishing single span of up to 36 meters (with LSGF in Southern countries), there are no internal columns inside a building, which allows the client or designer to create unique planning solutions without reference to any supporting load-bearing steel structures.

BUILDING ELEMENTS

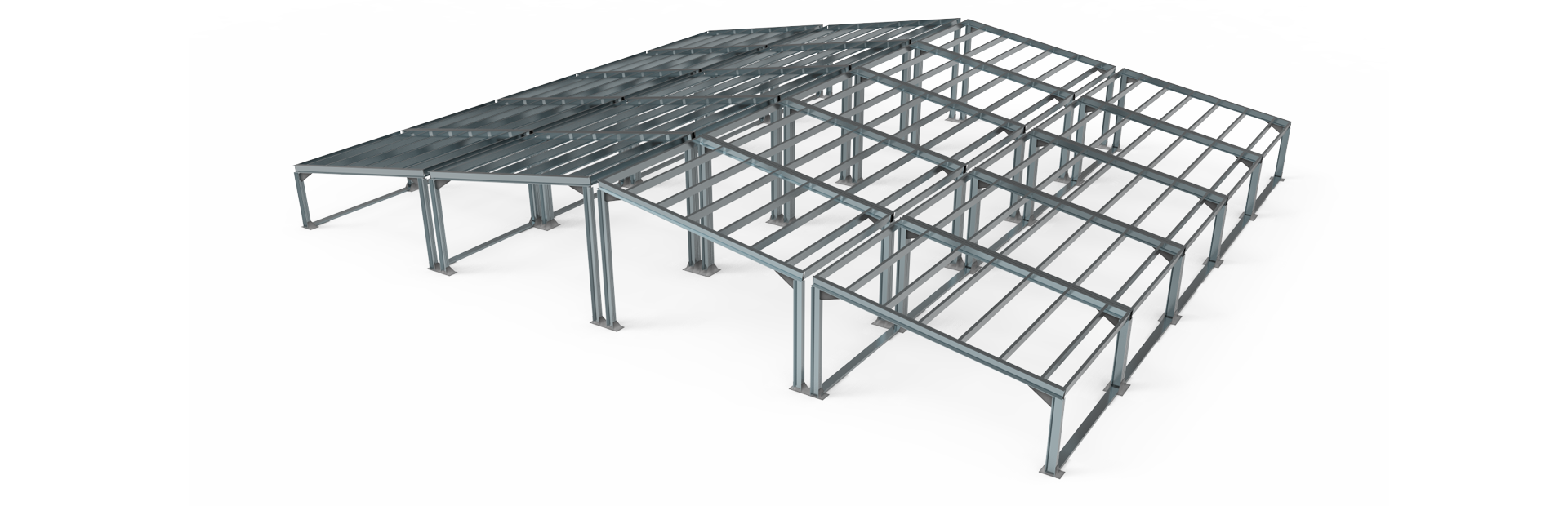

Hybrid system (Rigid framing and LSGF)

Steel grade

S245 and S350 (yield strength)

Grade of galvanizing

1st class (275 g/sq.m.) Premium

Metal consumption

From 20kg / sq.m. (Northern countries)

Span and height

Up to 36m wide (without columns) Up to 20m height (by inner wall)

Fire resistance

To the IV degree (panels outside) III-I degree (panels inside)

Bay spacing

3-6 m. (between columns)

Welded beam (I- and H-Beam)

Steel grade

S245 (yield strength)

Grade of galvanizing

1st class (275 g/sq.m.) Premium

Metal consumption

From 26kg / sq.m. (Northern countries)

Span and height

Up to 100m wide (without columns) Up to 20m height (by inner wall)

Fire resistance

To the IV degree (panels outside) III-I degree (panels inside)

Bay spacing

6-12 m. (between columns)

Light Gauge Steel Framing (C-channel)

Steel grade

S350 (yield strength)

Grade of galvanizing

1st class (275 g/sq.m.) Premium

Metal consumption

From 15kg / sq.m. (Northern countries)

Span and height

Up to 30m wide (without columns) Up to 12m height (by inner wall)

Fire resistance

To the IV degree (panels outside) III-I degree (panels inside)

Bay spacing

3-6 m. (between columns)

Gable roof type

It is the most common and economical steel structure in global markets. 15% cheaper than a single slope roof. It is used in many segments of international industries (hangars, warehouses, offices, shops, workshops, etc.). Without strict requirements for appearance, it is often approved and agreed with the local architectural department.

Flat rood

It is a common choice for buildings with strict requirements for the appearance and special purpose of the building. This is the most beautiful design, but also the most expensive (20-25% more expensive than the gable roof). The angle of the ramp is usually 2 degrees. A parapet with a height of 0.6m is used along the perimeter from above on the roof.

Single slope roof

A design with 1 slope is used less often and costs about 15% more than a gable roof. Its application is found for extensions to existing buildings, renovations and small buildings.

Secondary framing

Included in the building kit. They usually consist of roofing and wall cold-formed profiles with a certain step. The goal is to give horizontal rigidity to the steel frame and create a subsystem for mounting enclosing structures.

Column basis

Included in the building kit. These are prefabricated elements made out of ferrous metal, which are mounted on an anchor group of a foundation for further installation of supporting vertical steel columns. IMPORTANT! An anchor group is usually bought by the client himself or his local installation organization in the place. It might be included for exports operations by request.

100% bolted connection

Included in the building kit. All elements in load-bearing light steel structures are braced and secured with high strength bolts. IMPORTANT! Welding is completely absent during assembly.

Diagonal bracing

Included in the building kit. Usually they consist of a round metal bar, angle or channel, depending on the specific design solutions, building dimensions and climatic zones (loads) The goal is to give horizontal rigidity to the steel frame. In some cases, portal frames or double diagonal ties are used for large building dimensions.

Frame mounting system

Included in the building kit. Usually these are angles or connecting elements on which the girders and auxiliary steel structures for cladding are mounted. Without them, it will not be possible to connect the main and secondary elements of the supporting main steel frame. A thin bent sheet of metal is used for framed openings, walls and roofs.

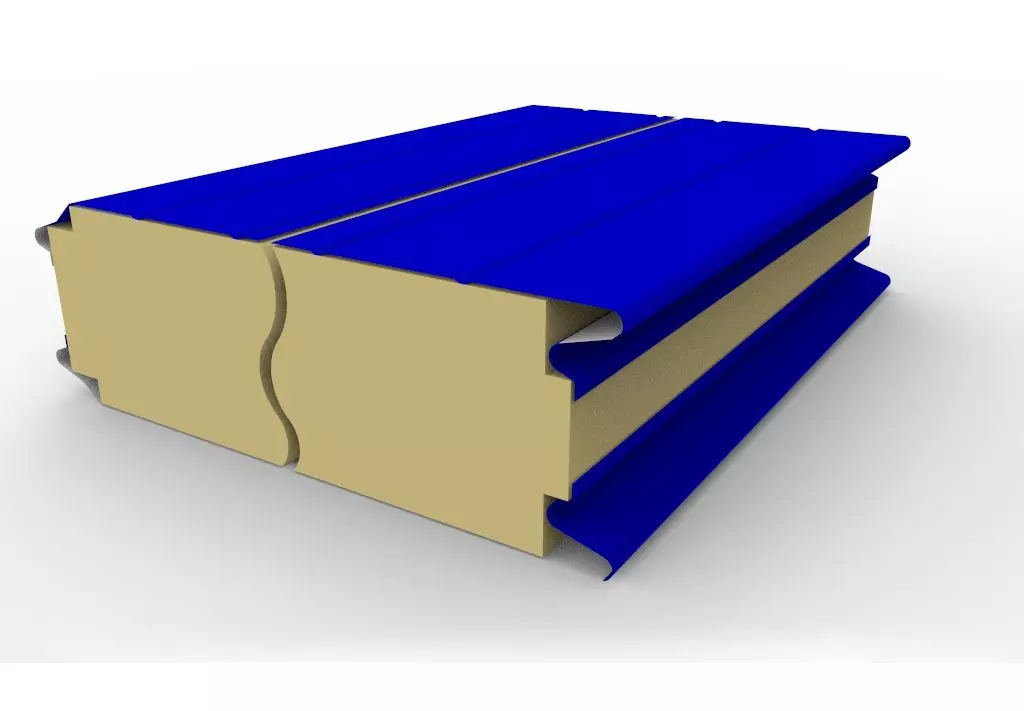

Insulated sandwich panels

Filler

Mineral wool, polystyrene or PIR (polyisocyanurate)

Cladding thickness

От 40 до 250mm

Сoating

Polyester, Plastisol, Olivinyl Fluoride,
Prism Colorcoat Prisma ™, Granite® CLOUDY

Sheet thickness

0.5-0.7 mm

Color spectrum

RAL, Color, ATASteel catalogs

Width/Length

От 1-1.2m / От 0.5 до 12m

Profiled sheet

Filler

No (cold version)

Cladding thickness

0.5-0.7mm

Color spectrum

RAL, Color, ATASteel catalogs

Width/Length

Any

Ventilated facades

Types

Fiber cement board, Composite cassettes, Metal cassettes, Porcelain cassettes

Filler

Mineral wool

Cladding thickness

50, 100, 150, 200 и 250mm

Sheet thickness

0.5-0.7 mm

Color spectrum

RAL, Color, ATASteel catalogs

Width x Height

0.59х1.56, 1.19х1.19, 1.15х1.15, 1.15х2, 1.15х3, 0.323х0.75, 0.323х1.55

Built-up cladding system

Filler

Mineral wool

Cladding thickness

От 40 до 250mm

Coating

Polyester, Plastisol, Olivinyl Fluoride,
Prism Colorcoat Prisma ™, Granite® CLOUDY

Sheet thickness

0.5-1.0 mm

Color spectrum

RAL, Color, ATASteel catalogs

Width/Length

Any

Thermal circuit

In order to increase the fire resistance of the building, an innovative solution is used - the installation of wall panels inside the steel frame (on columns and under the lower truss belt) It is often used for agricultural objects with a high level of humidity and an aggressive environment. For buildings mae out of LSGF III-I degree of fire resistance is applied. Also, you can use the classic external contour (installation of panels outside) with higher IV degree.

Gates

The buildings are equipped with reliable high-quality insulated industrial gates (with vertical rise, swing, hangar, etc.) of Russian manufacturers (DoorHan, AlluTech) with the ability to add automation, radio control, different color solutions and openings for windows.

Doors

Reliable beautiful door entrance, insulated single or double fire doors with closers, windows and various color and anti-vandal solutions can be included in the building kit.

Solar panels

We supply buildings with innovative solar panels based on highly efficient heterostructure modules of the "German Hevel plant" with a battery pack and a diesel generator set. This is an ideal solution for stand-alone and backup power supply with a significant minimization of the cost of operating a building in regions remote from networks. In the design of supporting structures, a system of nodal connections of batteries with a roof is taken into account.

Windows

We supply high-quality double-glazed windows by well-known Russian manufacturers of window systems KBE, Rehau with excellent noise reduction properties, diverse color solutions and a high level of reliability for any building purpose

Indsutrial Sky Lights

We use innovative patented lights on the roof of the building with filling the dome with cellular polycarbonate of the Russian Leron plant for effective natural lighting (up to 6m wide) with automatic smoke removal and ventilation systems. In the design of supporting structures, the subsystem for lights is taken into account. Customers save significantly on energy savings even on the most winter and cloudy days of the year.

Fittings

Fittings are included by default in the building kit in order to protect the joints of the metal skin from severe weather conditions.

Our innovations

Reducing the cost of C-channel frames up to 20-30% compared with I-Beam

Despite almost the same strength indicators (tensile, compression, shear, bending, etc.), LSGF frames (cold-formed galvanized profile) can minimize building metal consumption by 20-30% when compared with frames made out of a classic welded or hot-rolled beam with spans up to 30m wide and 6m high (inside the wall)

Reducing the cost of C-channel frames up to 20-30% compared with I-Beam

We continue to reduce the costs of steel frameworks based on more efficient design and engineering solutions (online BIM technologies) and automated production methods (Smart Continuous Production). Very often, factory's work with thin metal borders on art. PK VESTA has strict internal regulatory requirements developed over the years for the production of these steel frames for international markets (minimum error margin of + -1 mm for the center distance between punch holes, bending radius, lack of mushroom effect, crescent shape, alignment of elements, etc. .), which allows you to easily and quickly assemble steel buildings in a short time without the use of welding machines and drills at the construction site.

New "Smart Techno Design Concept" allows serving Customers 24/7

After many years of applied and scientific research, the PK VESTA factory for the first time since 2011 came close to fully automating customer service via the Internet based on the WebSteel online cloud service.

New "Smart Techno Design Concept" allows serving Customers 24/7

Now, numerous laborious calculations of the cost of individual buildings with ciwil work, assembly and complex 3D visualization of the building began to be carried out free of charge by the client via the Internet instead of the factory. The design of the building takes place in the area of technical capabilities of the plant, making the online design of the building more technological for the end customer.

We believe that this approach is revolutionary, because unlike a specific engineer and traditional local CAD, many processes in WebSteel are automated and allow the client to show their individuality in creating a unique image of the building, quickly budget the building with its subsequent online order at the factory to any point of the world. And for the plant, these are almost unlimited online opportunities for serving many customers from different countries for 1 unit of time.

Increasing the fire resistance of a building (LSGF) to R15

In 2018, PK VESTA received an innovative opinion on assessing the fire resistance limit for buildings made out of LSGF at the head of the well-known Russian expert organization on fire safety - the Research Institute of Fire Defense (FSBI VNIIPO) with the requirements for certain changes in design decisions.

Increasing the fire resistance of a building (LSGF) to R15

Now in projects for buildings made out of LSGF we use IVth degree of Fire Resistance (with an external thermal circuit - panels outside) and up to Ist one (internal thermal circuit - panels are sewn from the inside onto columns and the lower truss belt), which allows the client to save significantly on the most affordable economical structures from LSGF, and most importantly, to exclude the incision of expensive fire-retardant material on the steel frame elements.

In accordance with Russian standards for the operation of a building from LSGF, it is possible to use without fire protection at the specified required fire resistance limit R15 (or IV degree of fire resistance, to which Russian standards include most buildings of industrial, warehouse, agricultural use) For export transactions, the degree of fire resistance is considered individually or additional measures are applied for fire safety by local contractors. Until now, few factories in Eurasia have this certificate, since it is difficult to obtain and not all plants can meet the requirements for design decisions and production lines.

Information technologies

WebSteel online system - for non-residential buildings from light metal structures

WebSteel - innovative i-cloud 24/7 service, which was created in 2011. in the Russian city of Tula on the basis of a new philosophy of serving customers online in construction idustry - "Smart Techo Design"

WebSteel online system - for non-residential buildings from light metal structures

The role of the designer at PK VESTA is gradually transferred to the client, who designs his individual steel building online within the range of technological capabilities of the factory, followed by placing an order shipped anywhere in the world. It is the radical shift in the business paradigm in global construction markets in a way how the customers will be served online in the future.

"Smart Loads Choice" Technology for Loads

The PK VESTA plant digitized many countries in Eurasia, the Middle East and Africa, which allowed the client to almost instantly determine the combination of basic climatic zones (snow, wind and seismic loads) that directly affect the calculation and determination of the specific metal consumption at the place of the click on the construction of the future building in the WebSteel system individual building.

"Smart Loads Choice" Technology for Loads

The development team spent several years working with the refinement of many parameters and data in different countries (regarding the snow, wind and seismic loads) If desired, the client himself can increase the load upwards with the subsequent auto recalculation of the cost of the frame (including the metal consumption)

"Smart Technology Choice" for auto selection of production methods

Depending on the selected building dimensions, the WebSteel system itself selects and advises the optimal technology for the production of steel frames (LSGF, HYBRID or Rigid framing), which often allows the client to save on building costs up to 20-30%.

"Smart Technology Choice" for auto selection of production methods

The most economical option may not always be available due to increased snow, wind or seismic loads at the construction site with a certain combination of these loads. Nevetherless, the client can easily choose another technology (LSGF, Hybrid systems or welded H-Beams) for quick recalculation of the online cost of the steel frame in real time in WebSteel system.

"Smart Metal Calculation" Technology to Calculate Optimum Metal Consumption

The most valuable feature of the WebSteel system is the automatic calculation of the metal consumption of the load-bearing steel frames in real time on a web server with an error of 3 to 10%

"Smart Metal Calculation" Technology to Calculate Optimum Metal Consumption

Calculating the price of buildings is the most time-consuming and expensive process for any plant, usually requiring a large number of engineers and designers in the local office to serve customers, especially when it comes to export operations. Any inaccuracies or errors in the calculation of metal consumption sharply increase the cost of the building and lead to the loss of customers among building suppliers.

The international group of developers of the PK VESTA plant spent over 10 years creating a unique online icloud algorithm for instant and most accurate calculation of frame weights depending on the types of structures (gable or single slope roof, flat roof), types of production technologies (LSGF, HYBRID systems or welded H-beams), a combination of climate zones (snow, wind and seismic), the availability of accessories (Skylights on the roof, parapets, framed openings for gates, doors and windows, etc.) and many other factors affecting the final calculation of the cost of the frame - all in real time.

"Smart Instant Visualization" Technology for Realistic Building Visualization

We have implemented an innovative browser-based 3D engine for instant visualization of individual buildings in real time, completely leaving the old resource-intensive Flesh developments.

"Smart Instant Visualization" Technology for Realistic Building Visualization

The view of the building in WebSteel has become technologically advanced and almost completely connected with the technical capabilities of the PK VESTA plant. The main emphasis was placed on the accessibility and speed of displaying a highly realistic 3D building model on the most common devices (including mobile versions of smartphones) A flexible online model was obtained, which quickly changes when the building dimensions, colors, openings (gates, doors and windows) and types of structures are created . And we gave the client the opportunity to do all this for free so that he himself decided on the specific order of the building kit at the factory. It only took several years to create one visualization online module in WebSteel.

"Smart Document Generation" Technology for Free Documentation

The parameterized system environment allows you to process all selected building parameters and create a single online document with a detailed technical task, a detailed commercial offer (prices for design, building, installation, foundation, floors and delivery) and basic sketches.

"Smart Document Generation" Technology for Free Documentation

The contract for familiarization with the lawyer and the invoice are also attached to the free documentation. And this is all for free! Working with WebSteel has become pleasant, convenient and understandable for people without technical education. Free sketches can be easily printed out from the online system and provided to local regulatory authorities in any country, investors or business partners.

Quality

You yourself create a unique image of the building!

We follow the new concept in international markets “Smart Techno Design”, where the client creates his own image of the building in the WebSteel online service in the zone of technological restrictions of production and then orders the building kit at the factory anywhere in the world.

You yourself create a unique image of the building!

The concept of “Smart Techno Design” is a high-tech combination of the plant’s technical capabilities with the needs of the client in the non-residential construction market based on the WebSteel online service. Now, the client, taking into account his worldview, culture and project requirements, can choose the most suitable building design based on many styles through the WebSteel online service: Contemporary, Scandinavian, Loft, Classic, Minimalism, Functionalism, Modern or Asian. We are sure that the time has come when a non-residential building should look as beautiful as a residential one. The role of the chief designer is gradually transferred from the factory to the client himself via the powerful online services.

Manufacturing accuracy

We have one of the lowest error margins in the manufacture of high-tech products in the international construction market in the range of + -1mm

Manufacturing accuracy

In the manufacture of load-bearing steel structures made out of LSGF - the error in punching holes, cutting profiles in length and the process of cold-formed profiling of elements is of great importance at the stage of assembly of the building. Unlike other plants, where the error in the center distance between the holes can reach + -3 or 4mm, we strictly adhere to a deviation of + -1mm on highly automated industrial European equipment, which gives an almost perfect guarantee for the successful installation of the steel frame (joining of different elements with many holes) when exporting a steel building to distant countries and regions (Asia, the Middle East or Africa) Plus, we exclude cases with the effect of mushroom, crescent and alignment of metal elements, which also often makes installation process more time consuming or even impossible. Work with thin metal borders on Art with us, where manufacturing accuracy helps put the building into operation faster for further successful work anywhere in the world.

Russian metal S350 with I class of galvanizing (275 g / sq.m.)

The use of any other classes of galvanizing II or III leads to a more rapid appearance of corrosion, especially if the building is used near water or with a high level of humidity or an ammonia aggressive environment indoors.

Russian metal S350 with I class of galvanizing (275 g / sq.m.)

The metallurgy in Russia, rich in resources, occupies one of the leading positions in the world in terms of output and quality. For the domestic market and export operations, PK VESTA uses only premium metal from well-known Russian metallurgical plants Severstal and Novolipetsk MK, which for many years have exported their products to many regions of the world - Eurasia, North and Latin America, the Middle East and Africa. The use of metal from other countries (for example, Chinese) may not always meet quality standards and impair the physical and mechanical properties of load-bearing structures.

Safety

High metal reliability

The steel used in our lightweight metal structures has the highest strength-to-weight and tensile strength ratios among other traditional building materials in the world. Plus, steel is the leading frame material for buildings and infrastructure, with a market share in many developed countries of more than 50% in the non-residential and multi-story residential industry (Steel Recycle Institute)

High metal reliability

Also, steel is the most recycled material in the world (more than 80 million tons per year) and environmentally friendly material for human health. Both operational and time costs for maintaining such structures are significantly lower than in traditional structures. We design safe buildings from steel load-bearing structures with 1 span of up to 30 meters from LSGF (in the northern countries) and up to 36 meters in span in the southern countries with or without minimal snow loads. And also the single-span builings with up to 100 meters wide without interior columns from Rigid framing (for northern and southern countries)

Buildings can withstand the enormous snow, wind and seismic loads

The engineering group of the PK VESTA plant necessarily takes into account the basic loads at the construction site (snow, wind and seismic) in the design scheme of the building, which can reach the maximum design values (snow load - up to 600 kg / sq., Wind load - up to 100 kg / sq. m. and seismic load - up to 10 points on the Richter Scale)

Buildings can withstand the enormous snow, wind and seismic loads

The PK VESTA plant has tremendous experience in designing steel buildings in the largest country in the world - Russia, with its many climatic and highly seismic zones, which gives sufficient confidence for international customers from southern countries without snow loads.

Our certificates

Specifications, price list and catalogue

Characteristics

Show

Price of buildings

Show

Booklets

Show

General:

Brand:

PK VESTA
Country/Origin of Goods:

Russia
Place of production:

Tula, Russia
FEA code:

9406903908
Supply of building kits:

Eurasia, Africa, Middle East, Latin America
Condition of buildings:

made "to order" from scratch (new)
Delivery :

land and/or sea (euro trucks and 40ft containers)
Structural warranty:

at least 50 years old
Product warranty:

1 to 5 years
Series:

INDI (Customized on order), TYP Series (Standard after project)
Scheme and form of payment:

40%x30%x30% and 70%x30% (L/C - letter of credit, T/T - bank transfer, D/P - payment after receiving a document confirming the shipment of goods by the seller)
Delivery conditions:

EXW, FOB, CIP, DAF, DDP

Load-bearing structures

Frame technologies:

LGF (cold-formed galvanized profiles), Rigid Framing (ferrous metal welded I beams) and HYBRID systems (LGF + Rigid Framing)
Element type:

H Beams (I-Beam), C Trusses/Columns (C-Channel)
Roof type:

Gable, single-slope, extensions, superstructures and flat roofs (single-span and multi-span)
Accessories:

All high-strength bolts (except anchor bolts), full trimming package, diagonal ties and connecting elements are included. Gates, doors, windows, skylights, canopies, transparent panels, solar panels
Steel type:

С245, С350, С345, C390 and C420
Galvanizing class:

only I (275 g/m2)
Metal Suppliers:

Russian Novolipetsk Iron and Steel Works and SeverStal
Secondary Elements:

Diagonal connections, secondary framing system (C-shaped, W- shaped. and Z- shaped)
Preparation level of elements:

High (numbering of elements taking into account cutting to the desired length, punching holes and a packing list for quickly finding the right pack at the construction site)
Connection of elements:

Only 100% bolted-together connection design (high strength and normal strength bolts)
Protection of ferrous metal elements:

Powder coating and/or hot dip galvanizing
Accounting for client technology:

Included if needed

Enclosing structures

Sheathing:

sandwich panels (mineral wool, polystyrene and PIR), sheet-by-element assembly (mineral wool), corrugated sheet (cold version), ventilated facades (metal cassettes, composite cassettes and porcelain stoneware – based on the mineral wool) and membrane roof
Accessories:

trimming package (flashing, framing openings, etc.), fasteners (self-tapping screws), skylights (or transparent panels), ventilation, sectional / swing gates, double-glazed windows (up to 6 chambers), solar panels and awnings.
Thermal circuit:

internal (panels from inside the frame are mounted) or external (all panels are mounted from the outside)
Basic colors (RAL):

White (9003), Gray (7004), Blue (5005), White-Aluminum (9006), Beige (1014), Yellow (1018), Green (6002), Light Gray (9002), Brown (8017)
Mineral wool density:

not less than 100 kg/cu.m.
Sheet thickness:

0.5mm, 0.6mm, 0.7mm, 0.8mm and 1mm (galvanized)
Preparation level of elements:

High (numbering of elements taking into account cutting to the desired length, punching holes and a packing list for quickly finding the right pack at the construction site)

Projects and Documents

Nordic Base Loads:

Snow (from 180 kg/sq.m. and above), Wind (from 32 kg/sq.m. and above) and Seismic – 6 points (MSK) Technological load: from 20 kg/sq.m. and higher.
Base loads for southern countries:

Snow (not taken into account), Wind (from 48 kg / sq.m. and above) and Seismic - 7 points and above (Richter Scale) Technological load: from 20 kg / sq.m. and higher.
Main projects:

assembly diagrams and instructions, diagrams of columns for the foundation, structure project (metal structures), cladding project (facade solutions), technical passport. Taking into account the state or commercial expertise.
Degree of fire resistance of the building:

IV-I
Certification:

ISO
Disclaimer:

when exporting buildings to other countries, different building codes are taken into account (European, American) and any other at the place of construction (Middle East, Africa, Asia, Latin America, etc.)

Making an I-shaped (H) welded beam

Metal cutting:

into strips of the desired length on a powerful high-precision laser machine
Assembly:

workpieces on the base
Welding:

all main elements
Process:

straightening elements on the mill
Partial welding:

bases of columns and stiffeners
Final preparation:

sand blasting / shot blasting / hot dip galvanizing
Painting:

included (upon request)
Factory primer:

included (20, 40, 60, 80, 100 microns and above)
Package:

in packs for euro trucks or 40 feet for containers

Making a C-profile

Process:

cold-formed metal profiling
Cutting and punching holes:

included (in auto mode)
Painting:

not included (high anti-corrosion properties)
Package:

in packs for euro trucks or 40 feet for containers

Price of buildings

Below are the prices for typical prefabricated buildings based on well-known construction technologies.

IMPORTANT! All prices for steel buildings are indicative and given for preliminary acquaintance with the approximate budget for the construction of your building. Nothing is fixed until agreed and confirmed in regards to all technical details of a cetain client's project. Too many factors affect the price level (combination of climatic zones, building dimensions, floating prices for raw materials, labor costs in different countries, bay spacing betweek steel frames, availability of geo-survey work, non-standard loads on walls and roofs, etc.) For more accurate calculation, use the free WebSteel online system (online accounting of the costs and availability of materials at the factory’s warehouse, certain design schemes and solutions) or make a detailed request for a price proposal at the Russian factory in Tula

Services	Length, m / bay spacing, 6 m.
With 20% VAT. Delivery – EXW. Snow – 210 kg/sq.m., Wind – 23 kg/sq.m., Seismicity – up to 6 points.	30	36	42	48	54	60
Delivery terms for assembly and civil work, months (steel framing and cladding, assembly drawings, technical passport and certified engineering calculations)	1.5	1.5	1.5	1.5	1.5	1.5
Terms of Foundation and installation works, months.	2	2	2	2	2	2
Steel framing, RUB. (1 storey, No crane beam, Single span, Gable, with bolts, 100% bolted connections)	891588	1133396.4	1290252	1447108.8	1603964.4	1760820
Cladding system, RUB. (profiled sheet), shaped elements, fasteners	610708.8	711445.8	812183.4	912920.4	1013658.6	1114395.6
Foundation work, RUB. (pier, base beam included, insulated brickwork – 0.4m high)	450688.8	553452.6	630730.2	708008.4	785286.6	862564.2
Concrete floor, RUB. (thickness-150mm, loads - up to 2 tones / sq.m., with reinforced topping - a streamlined top layer of concrete)	555849.6	682591.2	777900.6	873210.6	968520	1063829.4
Assembly, RUB. (there are access roads, process technical water, electricity and a fence, cramped conditions are absent)	405619.8	498106.8	567657	637207.8	706758	776308.2
Number of Euro trucks, pieces	3	3	3	4	4	5
DELIVERY, RUB. (ground, up to 200 km)	24000	24000	24000	32000	32000	40000
Total from:	3457435.2	4244422.6	4833565.8	5430710.8	6019854.6	6616996.8
Width: 12 m 15 m 18 m 24 m 30 m 36 m 42 m Height: 4 m 6 m 8 m 10 m

Advertising booklets

Be familiar with PK VESTA factory from the famous city Tula

About PK VESTA

Download presentation
(6 Mb)

Ask a question or order a calculation

Pre-engineered steel buildings

Steel buildings from city Tula, Russia

Basic warranty

Extended Warranty

Design and engineering

The new concept of “Smart Techno Design”

Design and engineering

Huge variety of appearance

Design and engineering

Unlimited possibilities to showcase your personality

Сonvenience and comfort

Experience the convenience of automating various engineering systems

Сonvenience and comfort

High heat and sound insulation properties

Сonvenience and comfort

100% free layout inside the building

Steel grade

Grade of galvanizing

Metal consumption

Span and height

Fire resistance

Bay spacing

Steel grade

Grade of galvanizing

Metal consumption

Span and height

Fire resistance

Bay spacing

Steel grade

Grade of galvanizing

Metal consumption

Span and height

Fire resistance

Bay spacing

Filler

Cladding thickness

Сoating

Sheet thickness

Color spectrum

Width/Length

Filler

Cladding thickness

Color spectrum

Width/Length

Types

Filler

Cladding thickness

Sheet thickness

Color spectrum

Width x Height

Filler

Cladding thickness

Coating

Sheet thickness

Color spectrum

Width/Length

Steel frame layout

Our innovations

Reducing the cost of C-channel frames up to 20-30% compared with I-Beam

Our innovations

New "Smart Techno Design Concept" allows serving Customers 24/7

Our innovations

Increasing the fire resistance of a building (LSGF) to R15

Information technologies

WebSteel online system - for non-residential buildings from light metal structures

Information technologies

"Smart Loads Choice" Technology for Loads

Information technologies

"Smart Technology Choice" for auto selection of production methods

Information technologies

"Smart Metal Calculation" Technology to Calculate Optimum Metal Consumption

Information technologies

"Smart Instant Visualization" Technology for Realistic Building Visualization

Information technologies

"Smart Document Generation" Technology for Free Documentation

Quality

Design

You yourself create a unique image of the building!

Production

Manufacturing accuracy
